Colt Army Special - Parts Identification

Colt Army Special Parts Identification

Colt Official Police Revolver Phantom View (circa. 1952)

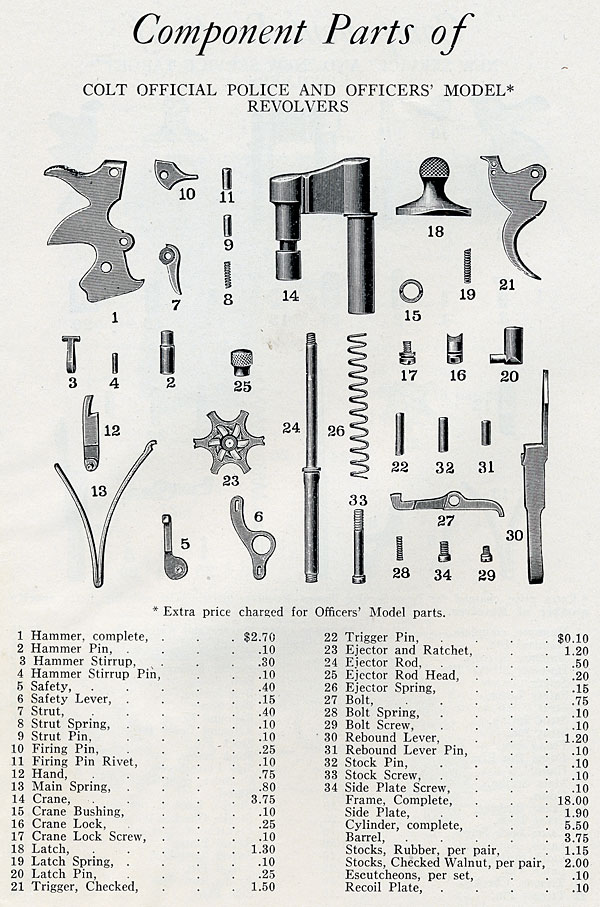

Colt Official Police Component Parts from an original Colt 1927 Parts Catalog
1. Hammer 14. Crane 27. Bolt
2. Hammer Pin 15. Crane bushing 27a. Bolt Spring
3. Hammer Stirrup 16. Crane Lock 28. Bolt Screw
4. Hammer Stirrup Pin 17. Crane Lock Screw 29. Rebound Lever
5. Safety 18. Latch 30. Rebound Lever Pin
6. Safety Lever 19. Latch Spring 31. Stock Pin
7. Strut 20. Latch Pin 32. Stock Screw
8. Strut Spring 21. Trigger, Checked 33. Side Plate Screw
9. Strut Pin 22. Trigger Pin   Frame and Side Plate
10. Firing Pin 23. Ejector and Ratchet   Side Plate
11. Firing Pin Rivet 24. Ejector Rod   Cylinder
12. Hand 25. Ejector Rod Head   Barrel, with Fixed Sight
13. Main Spring 26. Ejector Spring   Barrel, (Target Model) with or without sight
